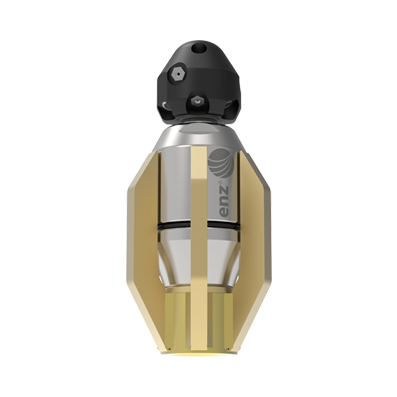

Bulldog 30 - 100

Description du produit

La buse rotative enz® Bulldog® a été conçue pour fonctionner avec de l’eau recyclée et de l’eau douce. Le palier coulissant astucieusement construit permet l’utilisation de tous types d’eau recyclée. Un système de freinage intégré sans huile entraîne une faible usure et un nombre de rotations contrôlé. Cela permet d’obtenir un nettoyage des tuyaux à la fois efficace et économique. Le diamètre de l’orifice de la buse détermine la taille maximale des particules de saleté pouvant passer, jusqu’à Ø 1 mm.

Caractéristiques

  • Facile à manipuler
  • L’outil est pratiquement sans entretien

Applications

  • Élimination des graisses, racines et incrustations plus dures
  • Utilisation avec de l’eau recyclée et de l’eau douce

Photos

width= »1/4″]

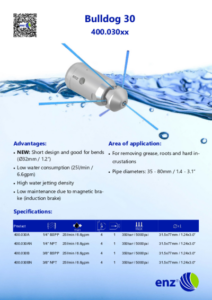

Bulldog 30 1/4" - 3/8"

Item number Item name
400.030A BULLDOG Rotating Nozzle 30mm 1/4″ 35 – 80 25 4 x M6 – 1 x M4 31.5 x 77 0.35 ok 350
400.030B BULLDOG Rotating Nozzle 30mm 3/8″ 35 – 80 25 4 x M6 – 1 x M4 31.5 x 77 0.35 ok 350

Bulldog 37 low flow 1/4" - 1/2"

Item number Item name
408.037 BULLDOG Rotating Nozzle 37-2 1/2″ 40 – 100 24 50°: 2 x M6 – 1x M6 15° 38 x 85 0.44 ok 350
408.037A BULLDOG Rotating Nozzle 37-2 1/4″ 40 – 100 24 50°: 2 x M6 – 1 x M6 15° 38 x 89 0.48 ok 350
408.037B BULLDOG Rotating Nozzle 37-2 3/8″ 40 – 100 24 50°: 2 x M6 – 1 x M6 15° 38 x 89 0.46 ok 350

Bulldog 37 1/2"

Item number Item name
400.037 BULLDOG Rotating Nozzle 37mm 1/2″ 40 – 125 50 30°: 6 x M6 – 1 x M6 – 15° 38 x 85 0.29 ok 200
400.037S BULLDOG Rotating Nozzle 37 mm 1/2″ 40 – 125 90 30°: 6 x M6 3 x M4 1 x M6 25° 15° 38 x 85 0.42 ok 200

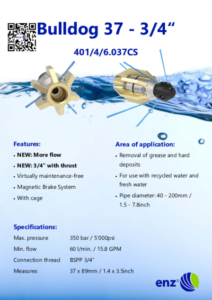

Bulldog 37 with skid 1/2" - 3/4"

Item number Item name
401.037 BULLDOG Rotating Nozzle 37mm 1/2″ 75 – 200 40 80°: 3 x M6 – – 60 x 121 0.72 ok 350
401.037CS BULLDOG Rotating Nozzle 37 mm 3/4″ 75 – 200 60 80°: 3 x M6 3 x M4 – 25° 60 x 121 0.78 ok 350
401.037S BULLDOG Rotating Nozzle 37 mm 1/2″ 75 – 200 60 80°: 3 x M6 3 x M4 – 25° 60 x 121 0.72 ok 350
404.037 BULLDOG Rotating Nozzle 37mm 1/2″ 75 – 200 50 30°: 3 x M6, 80°: 3 x M6 – – 60 x 121 0.72 ok 350
404.037CS BULLDOG Rotating Nozzle 37 mm 3/4″ 75 – 200 80 30°: 3 x M6, 80°: 3 x M6 3 x M4 – 25° 60 x 121 0.78 ok 350
404.037S BULLDOG Rotating Nozzle 37 mm 1/2″ 75 – 200 80 30°: 3 x M6, 80°: 3 x M6 3 x M4 – 25° 60 x 121 0.72 ok 350
406.037 BULLDOG Rotating Nozzle 37mm 1/2″ 75 – 200 65 30°: 6 x M6 – 2 x M4 30°/15° 60 x 121 0.90 ok 350
406.037CS BULLDOG Rotating Nozzle 37 mm 3/4″ 75 – 200 85 30°: 6 x M6 3 x M4 2 x M4 25° 30°/15° 60 x 121 0.78 ok 350
406.037S BULLDOG Rotating Nozzle 37 mm 1/2″ 75 – 200 85 30°: 6 x M6 3 x M4 2 x M4 25° 30°/15° 60 x 121 0.72 ok 350

Accessory and wearing parts Bulldog 30 1/4" - 3/4"

Item number Item name
00100.030101 Head Bulldog 30 without inserts 28 x 20 0.06
00100.037101 Head Bulldog 1/2″ 34 x 21 0.06
00100.037104 Head KBR Bulldog 37 33 x 29.5 0.10
00100.037107 Head Bulldog 1/2″ 3×2 34 x 21 0.06
00100.03720 Cage for Bulldog 37 1/2″ 75 – 200 60 x 110 0.26
00100.03720B Skid for Bulldog 37 3/4″ 75 – 200 60 x 78 0.29

Bulldog 60 3/4" - 1"

Item number Item name
400.060A BULLDOG Rotating Nozzle 60 mm 3/4″ 100 – 300 100 6 x M8 6 x M8 1 x M8 15° 60 x 153.5 2.10 ok 200
400.060B BULLDOG Rotating Nozzle 60 mm 1″ 100 – 300 100 6 x M8 6 x M8 1 x M8 15° 60 x 153.5 2.10 ok 200
404.080HS100 BULLDOG 100 mm cage 1″ 125 – 400 200 6 x M10 6 x M8 1 x M10 15° 100 x 220 3.70 ok 200
404.080HS150 BULLDOG 150 mm cage 1″ 170 – 400 200 6 x M10 6 x M8 1 x M10 15° 150 x 260 5.77 ok 200

Accessory and wearing parts Bulldog 60 - 80 3/4" - 1"

Item number Item name
100.060300 Scissors skid 3/4″ 300 – 1100 300 – 1100 x 773 8.99 350
00100.0807 Skid guidance for Bulldog 80 / 60 1″ 125 – 400 100 x 135 0.80 –
00100.08073 Thrust stop with O-Ring and screw – – – 0.04 –
00100.0808 Skid guidance for Bulldog 80/60 1″ 170 – 400 150 x 180 2.87 –
00400.0605 Head Bulldog 60 – – 50 x 42 0.32 –
00402.0805-4 Head HRH Bulldog 80 – – 65 x 55 0.67 –
00404.0805-12 Head KBR Bulldog 80 – – 65 x 55 0.69 –
100.060300J Scissors skid with hand lever 3/4″ 300 – 1100 300 – 1100 x 773 8.59 350
100.060300JP Scissors skid with polyurethane wheels 3/4″ 300 – 1100 300 – 1100 x 773 11.00 350
100.060300JS Scissors skid with steel wheels & hand lever 3/4″ 300 – 1100 300 – 1100 x 773 9.27 350
100.060300P Scissors skid with polyurethane wheels 3/4″ 300 – 1100 300 – 1100 x 773 10.18 350
100.060300S Scissors skid with steel wheels 3/4″ 300 – 1100 300 – 1100 x 773 9.67 350

Bulldog 100 1" - 1 1/4"

Item number Item name
400.101A BULLDOG Rotating Nozzle 100 mm 1″ 250 – 600 200 35°: 3 x M10, 90°: 2 x M10 6 x M10 1 x M10 15° 130 x 260 6.50 ok 200
400.101B BULLDOG Rotating Nozzle 100 mm 1 1/4″ 250 – 600 200 35°: 3 x M10, 90°: 2 x M10 6 x M10 1 x M10 15° 130 x 260 6.50 ok 200
401.101AS BULLDOG Rotating Nozzle 100 mm 1″ 250 – 600 200 80°: 6 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200
401.101BS BULLDOG Rotating Nozzle 100 mm 1 1/4″ 250 – 600 200 80°: 6 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200
404.101AS BULLDOG Rotating Nozzle 100 mm 1″ 250 – 600 200 80°: 3 x M10, 45°: 3 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200
404.101BS BULLDOG Rotating Nozzle 100 mm 1 1/4″ 250 – 600 200 80°: 3 x M10, 45°: 3 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200

Accessory and wearing parts Bulldog 100 1" - 1 1/4"

Item number Item name
00100.1017A Skid guidance 1″ Bulldog 100 mm 1″ – 1 1/4″ 200 – 600 166 x 133 2.30
00100.1017B Skid guidance 5/4″ Bulldog 100 mm 1″ – 1 1/4″ 200 – 600 166 x 133 2.20
100.10073 Thrust stop with O-Ring and screw – – – 0.04
00400.1014 Head KBR Bulldog 100 – – 79 x 78 1.20
00400.1015 Head RGS Bulldog 100 – – 78 x 78 1.07
100.1004RA Cage Ø400 1 1/4″ m -> 1″ f 400 – 1000 380 x 580 10.00
100.1004RB Cage Ø400 1 1/4″ m -> 1 1/4″ f 400 – 1000 380 x 580 10.00
100.1019A BULLDOG Skids for cage 400.100 1 1/4″ – 1″ f 250 – 800 200 x 290 3.80
100.1019B BULLDOG Skids for cage 400.100 1 1/4″ – 1 1/4″ f 250 – 800 200 x 290 4.86
